About Thermal simulation, please below mantis ID (854) https://mantis.cnsbg.foxconn.com/vaas/view.php?id=854 Thanks SON |
|
|
About BT antenna simulation, please below mantis ID (840) https://mantis.cnsbg.foxconn.com/vaas/view.php?id=840#c3805 |
|
|
Hi Mr.Yoon and Philip, Upload the thermal simulation report of separated PCBA (Main board & AMP/IO board) as attached. |
|
|
Hi SH, Add power dissipation of each audio amplifier in attached simulation report. Thanks. |
|
|
@Sean Please update system Power tree 0000840:0003750 . It was system power tree based on 90W speaker - Update based on 60W speaker We should review the using a 24V/4A adapter with system power tree Thanks SON |
|
|
Hi Tom, Please update power tree to SH based on 60W speaker. Regards, Sean |
|
|
Dear Sean and Tom How about your simulation status? - DDR SI simulation :FXN will do it until 7/24 - eMMC SI simulation :FXN will do it until 7/24 Your submitting date was very delayed. Please update your status ASAP. Best regards Lonnie Kim |
|
|
Hi SH, Update system power tree based on 60W speakers for noraml&max. system power The 24V/4A PSU should be no problem to fit SWAN's requirement. |
|
|
Hi Lonnie, Reply 0000852: 0003976 As you know that we have built an EVT2 board as the final design, so we will simulate the DDR & eMMC based on the EVT2 main board only. We have booked the DDR & eMMC simulation internally and the report can be completed by next Wednesday(8/19). Please be informed about this. Regards, Sean |
|
|
Dear Sean Thank you for your update. Okay. Please update when you have finish simulation. Best regards Lonnie Kim |
|
|
Hi Lonnie, Please find attached for the EVT2 board DDR simulation report. You can found that some of the reflection over the ADD/CMD of U2 & U4 due to the fly-by topology, and that will cause not enough setup time. I've consult this issue with Synaptics China team Xiaomin Luo since we are followed the same layout routing rule as reference board. And it looks that Synaptics have saw this sympaton on their reference board and they can fine-tuned the setting to make it stable. In addition, Synaptics don't have ibis for eMMC I/F . So, we have no way to simulate the eMMC. Regards, Sean |
|
|

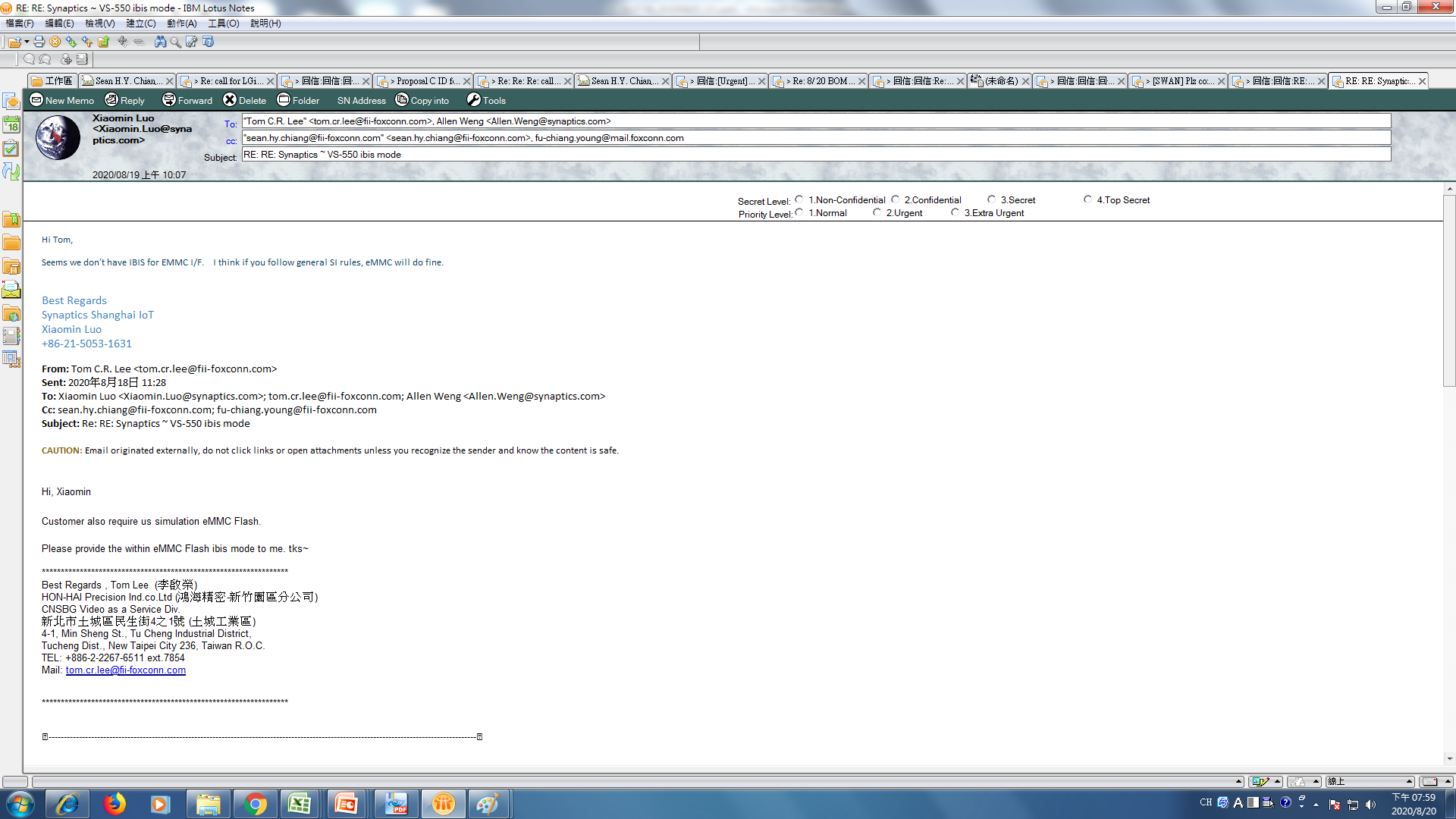

Hi Lonnie, I have attached email about ibis eMMC with Synaptics. FYR. Regards, Sean eMMC IF ibis_simulation_email.png (234,369 bytes) |
|
|
The SWAN already entered the MP stage. There is no further action needed for this issue. So, we close this mantis issue. Thanks! |
